IKEUCHI

3/8MAJP12PPS

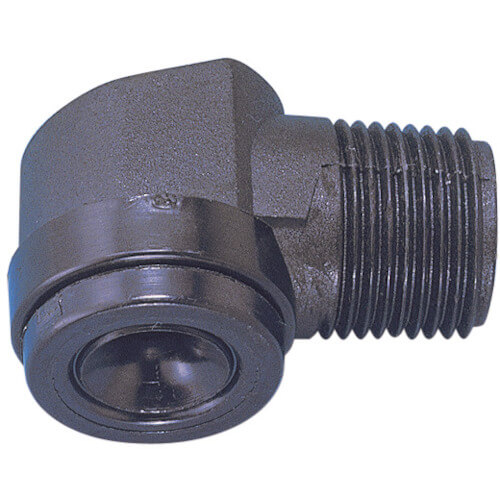

Minimal Clogging Full Cone Spray Nozzle

฿166
฿199
แบรนด์ IKEUCHI
รหัสสินค้า 3/8MAJP12PPS
รหัสสั่งซื้อ 434-1805
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • A filled cone nozzle with a circular spray pattern that distributes in uniform flow rate.
  • Because the nozzle aims to atomize liquid by collision inflow instead of using a swivel, the foreign particle passage diameter is extremely large.
  • Spray at right angles to the inflow direction of the liquid.
ข้อมูลสินค้า
  • Spray Angle (°) : 85 (at 0.2MPa)
  • Spray Amount (L/min) : 12.00 (at 0.2MPa)
  • Screw Size : R3/8
  • Dimension (mm) (total length x distance between parallel sides of hexagon) : 37.0 x 19
  • Standard pressure : 0.2MPa
วัสดุ
  • Polyphenylene sulfide (PPS)
น้ำหนัก 10.3 g
การใช้งาน
  • Applications for uses where nozzle clogging is a concern, such as use for circulating water.
  • ประเทศที่ผลิต Japan
    ข้อมูลจากผู้ผลิต IKEUCHI 3/8MAJP12PPS (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    หม่วดหมู่แบรนด์ IKEUCHI
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา หัวสเปย์ฉีดน้ำ หัวสเปย์ฉีดน้ำ
